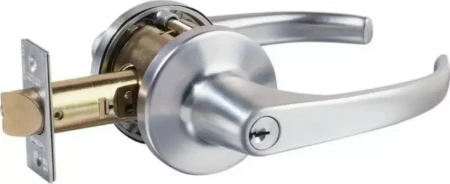

The 930 Key in Knob range suits residential and commercial applications, available in a wide variety of functions.
- Backset - 70mm standard - 60mm and 127mm latches available separately
- Latch - 13mm projection brass bolt
- A range of spindles and screws for thicker doors are available, function specific
- Handing - No
- Cylinder - 5 pin brass cylinder
Fire Rating
Lockwood 930 Series Locksets have been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets
Code |
Function |
Keying |
Door Thickness |

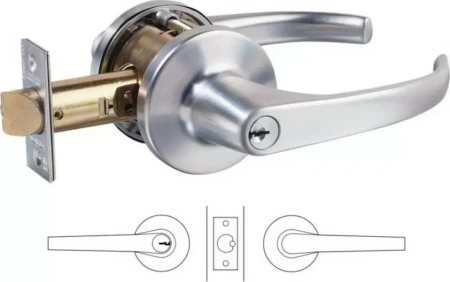

930 |
Entrance |
Ext Key - Int Turn Snib |
32-48mm |

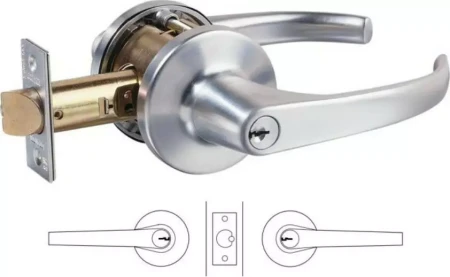

936 |
Classroom |
Ext Key - Int Free to Egress |
32-48mm |

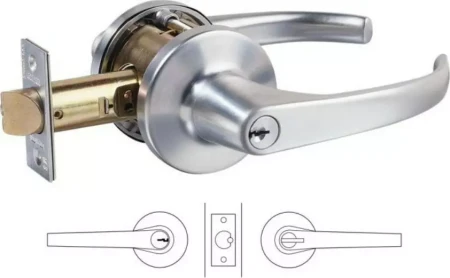

938 |
Storeroom |
Ext Key - Int Free to Egress |
32-48mm |
934 |
DBL Cyl Entrance |
Ext Key - Int Key |
32-45mm |

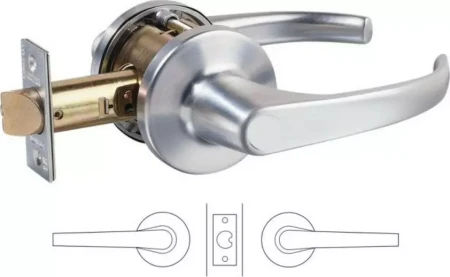

931 |
Passage |
Non Locking |
32-45mm |
