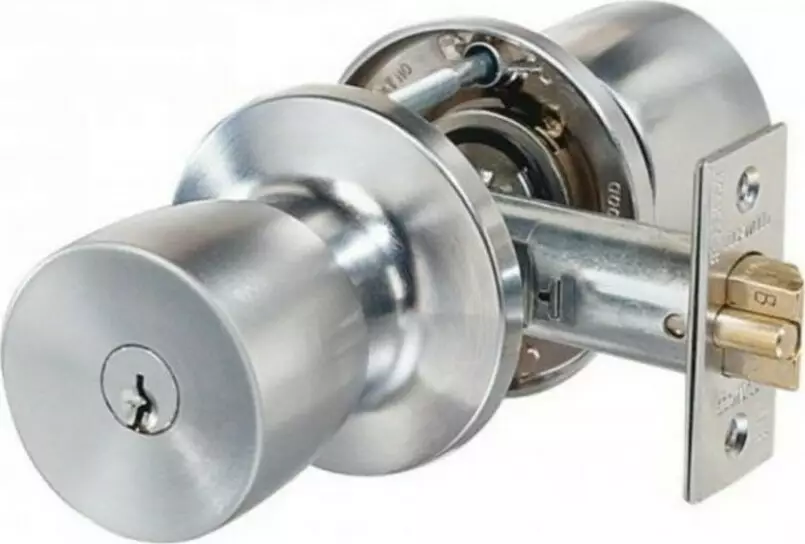

The 530 Key in Knob range suits residential and commercial applications, available in a wide variety of functions.
- Backset - 60mm standard - 70mm and 127mm latches available separately
- Latch - 13mm projection brass bolt
- A range of spindles and screws for thicker doors are available, function specific
- Handing - No
- Cylinder - 5 pin brass cylinder
Fire Rating
Lockwood 530 Series Locksets have been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets
Code |
Function |
Keying |
Door Thickness |
530 |
Entrance |
Ext Key - Int Turn Snib |
32-48mm |
536 |
Classroom |
Ext Key - Int Free to Egress |
32-48mm |
538 |
Storeroom |
Ext Key - Int Free to Egress |
32-48mm |
534 |
DBL Cyl Entrance |
Ext Key - Int Key |
32-45mm |
Function:
$240.86 NZD
Approx $149.68 USD excl GST
532 Privacy Knob Set 60mm B/set - SC
