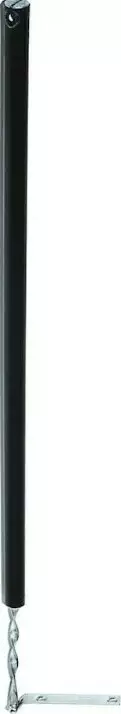

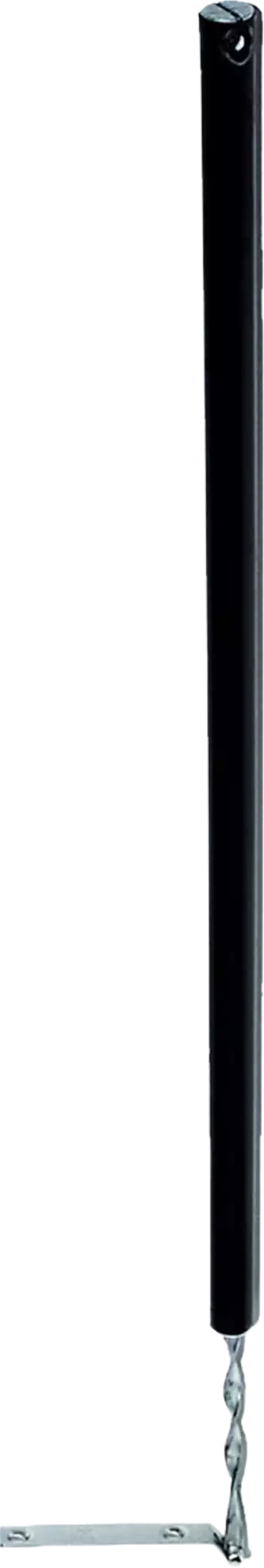

Whitco spiral balance units to suit sash weights 10 - 14kg

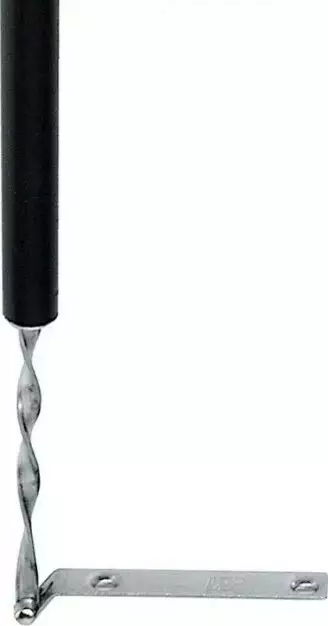

Mounting foot attached
Specifications
- Oil tempered carbon steel tension spring
- Zinc plated variable pitch spiral
- Tough ABS black polymer outer casing
- Supplied individually in trade pack only
Not all spiral balances are stocked, uncommon sizes are made to order with a lead time of approximately 2 weeks
Use pages 7-9 in the Whitco PDF selection chart & catalogue to select the correct spiral balance unit required using the following information from your existing installation :
- Body length (spiral balance tube length)
- Window sash weight
- Foot type
Balance Number:
500 Spiral Balance 10 - 14kg Standard Foot
Aluminium Door Specific
