Code: RP99SI-820

Brand: Raven

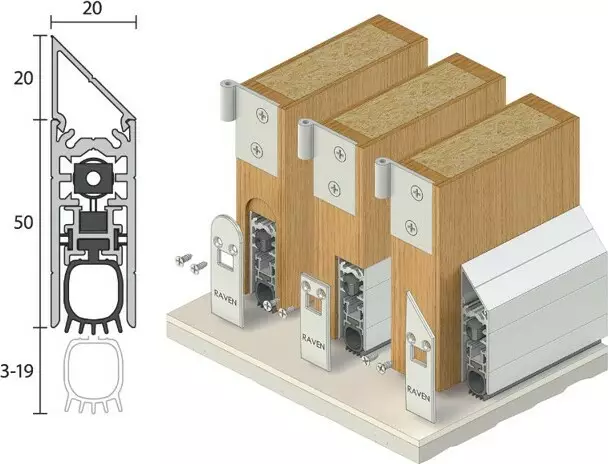

A heavy duty adjustable automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened

Acoustically designed, with a silicon gasket for medium temperature smoke applications

Operated automatically by pressure on the door jamb or stop by its adjustable strike

Includes aluminium cover for concealed fixing for face mounted installation.

Can be face mounted or fully morticed into single or double solid core hinged doors

  • Seal - Black silicone rubber
  • Min/Max Gap - 3 - 19mm
  • Finish - Silver Anodised - CA
  • Length - 380-1220mm (Seals cut back to exact size)
  • See data sheet for full specification
Seal length (mm) Cut down to (mm)
1220 1070
1070 920
920 820
820 600
600 380
380 295
Length:
Excl Incl

$162.45 NZD
Approx $100.95 USD excl GST

RP99Si Door Bottom Seal Auto CA - 820mm
