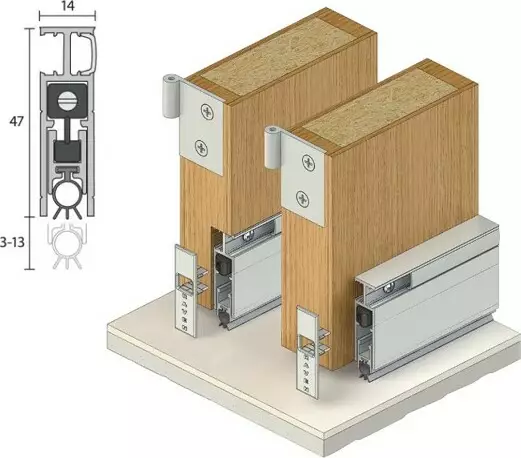

Face mounted or semi-morticed into the bottom of solid core single and double butt hinged doors
The RP35Si can also be face mounted to the bottom of metal doors & is spring loaded to lift clear of the floor when the door is opened
Acoustically designed & featuring silicon gaskets for medium temperature smoke and fire door applications
Operated automatically by pressure against the door jamb on its adjustable strike
- Seal - Grey silicone rubber
- Min/Max Gap - 3 - 13mm
- Finish - Clear anodised
- Length - 380-1220mm (Seals cut back to exact size)
- See data sheet for full specification
Seal length (mm) |
Cut down to (mm) |
1220 |
1070 |
1070 |
920 |
920 |
820 |
820 |
600 |
600 |
380 |
380 |
295 |
Length:
$119.02 NZD
Approx $74.84 USD excl GST
RP35Si Door Bottom Seal Auto CA - 920mm
