Code: RP35SI-1070

Brand: Raven

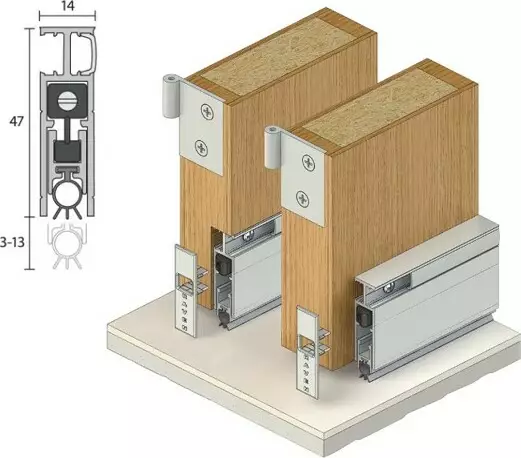

Face mounted or semi-morticed into the bottom of solid core single and double butt hinged doors

The RP35Si can also be face mounted to the bottom of metal doors & is spring loaded to lift clear of the floor when the door is opened

Acoustically designed & featuring silicon gaskets for medium temperature smoke and fire door applications

Operated automatically by pressure against the door jamb on its adjustable strike

  • Seal - Grey silicone rubber
  • Min/Max Gap - 3 - 13mm
  • Finish - Clear anodised
  • Length - 380-1220mm (Seals cut back to exact size)
  • See data sheet for full specification
Seal length (mm) Cut down to (mm)
1220 1070
1070 920
920 820
820 600
600 380
380 295
Length:
Excl Incl

$133.98 NZD
Approx $84.25 USD excl GST

RP35Si Door Bottom Seal Auto CA - 1070mm
