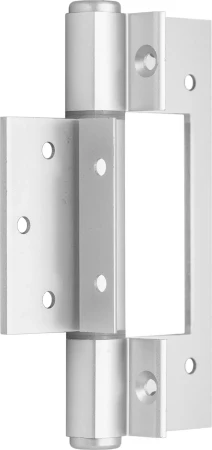

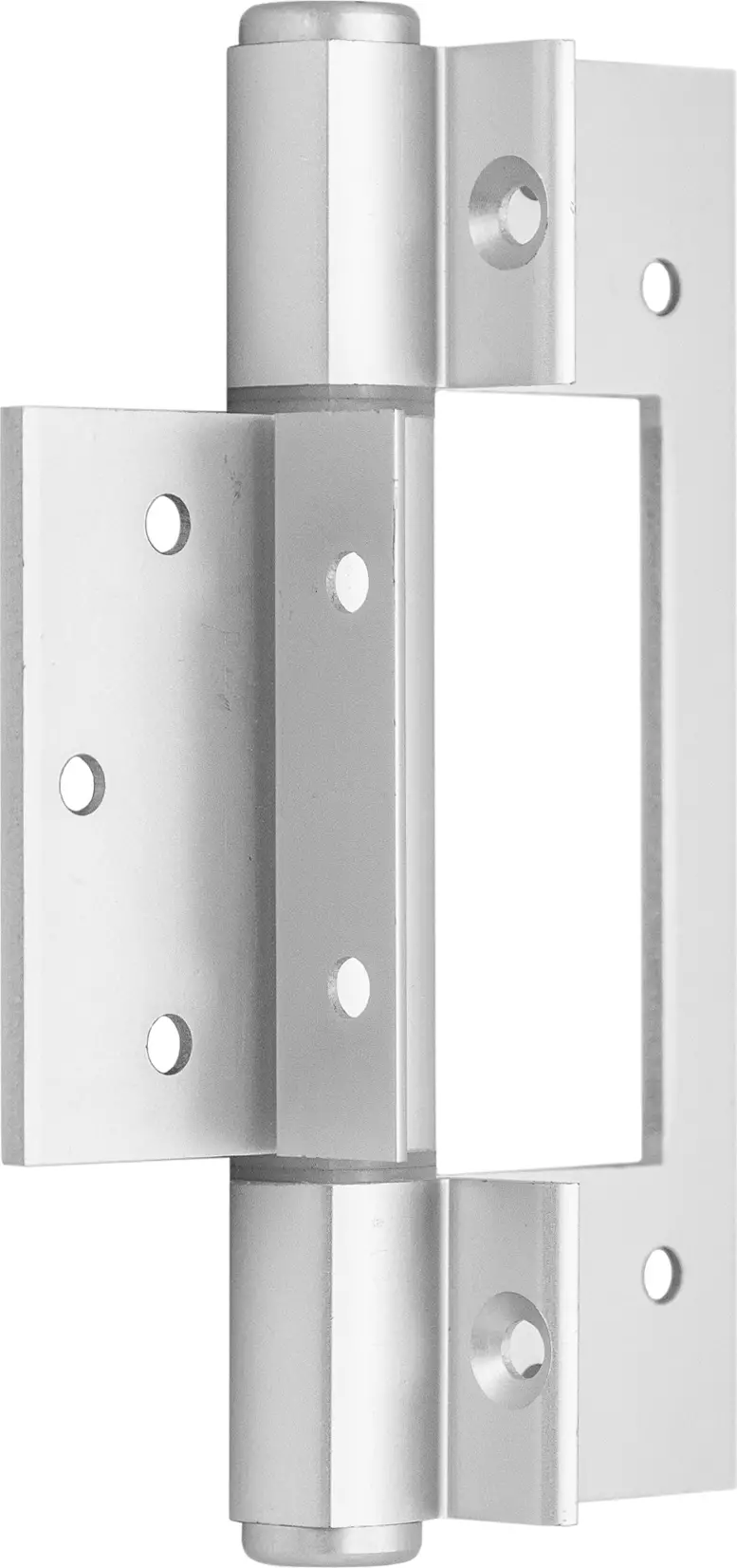

Aluminium Double Fix Hinge

Code: D1535

Brand: Miles Nelson

  • Extruded double fixing interfold commercial door hinge
  • Fastening screws supplied
  • Rivets are not recommended
Specifications
Material Aluminium Alloy T6
Pin Material- Diameter 304 Stainless Steel - 6mm

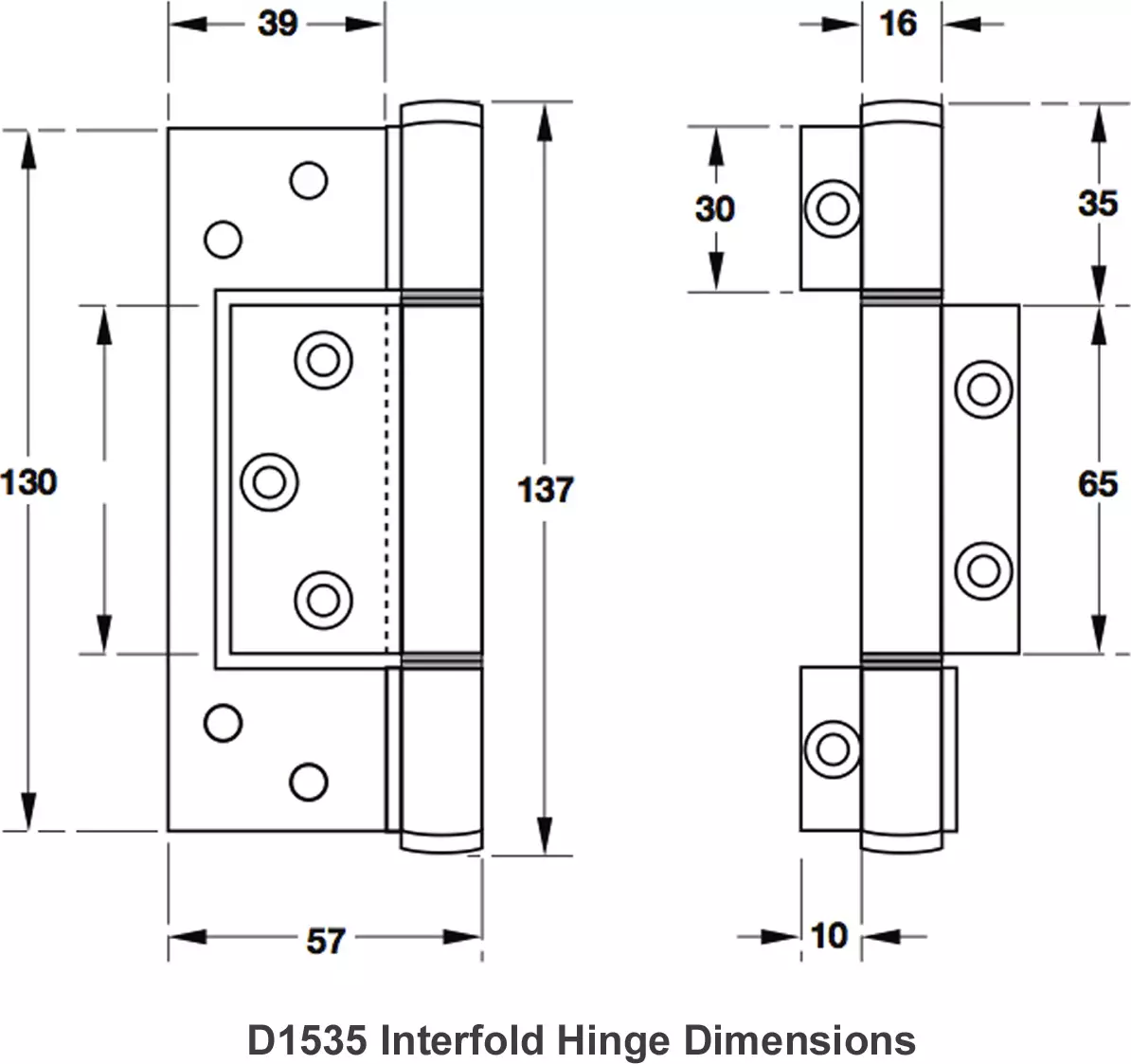

Closed dimensions 130 x 58mm
Max Weight 40kg
Lead Time: Up to a week
This lead time is a guideline from our supplier and is subject to change. Manufacturing constraints and/or international freight may cause delays to lead times stated.
Excl Incl

$19.75 NZD excl GST

ea

See all Miles Nelson in Commercial products

Category Products (Commercial)

3 Leaf Off Centre Pivot Hinge - 146 x 50mm View Product

3 Leaf Off Centre Pivot Hinge - 146 x 50mm

Fletcher
BLK
D1114
$46.86 NZD excl GST
146 x 58mm 3 Leaf Centre Pivot Hinge - BLK View Product

146 x 58mm 3 Leaf Centre Pivot Hinge - BLK

Fletcher
BLK
D1116
$35.26 NZD excl GST
100mm Quick Fix Door Hinge - BLK View Product

100mm Quick Fix Door Hinge - BLK

Joinery Hardware
BLK
D1500
$20.06 NZD excl GST
Fast Fix Hinge 100 x 70 x 2.5mm SS304 View Product

Fast Fix Hinge 100 x 70 x 2.5mm SS304

Yale
D1502
$10.76 NZD excl GST
Aluminium Double Fix Hinge View Product

Aluminium Double Fix Hinge

Miles Nelson
D1535
$19.75 NZD excl GST
Wide Throw Interfold Hinge - SN View Product

Wide Throw Interfold Hinge - SN

McCallum
D1537
$21.18 NZD excl GST
110mm HD Quick Fix Door Hinge View Options

110mm HD Quick Fix Door Hinge

Joinery Hardware
BLK
PC
2 options from:
$18.70 NZD excl GST

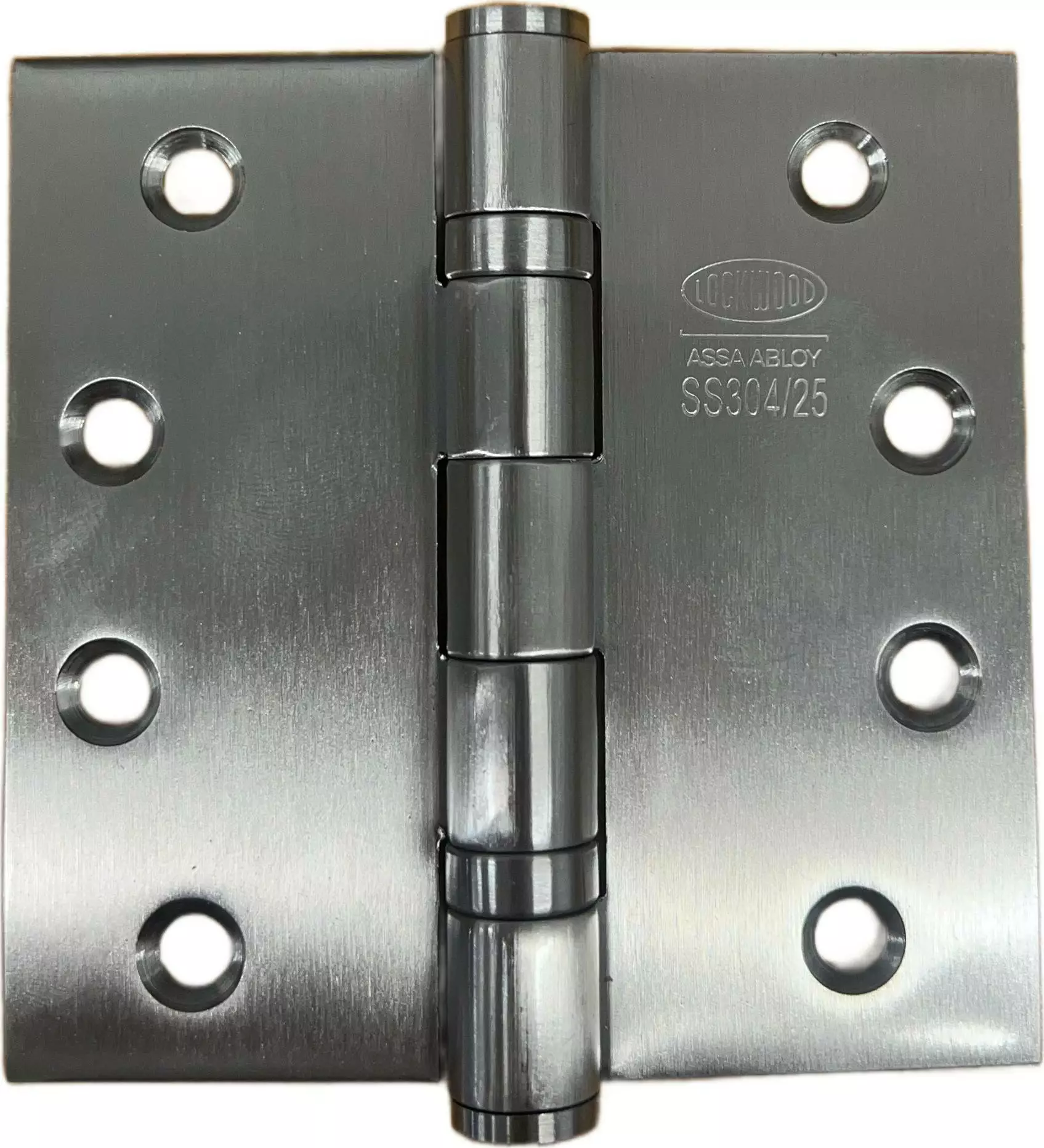

Hinge 100 X 100mm Heavy Duty Ball Bearing Hinge - SS View Product
