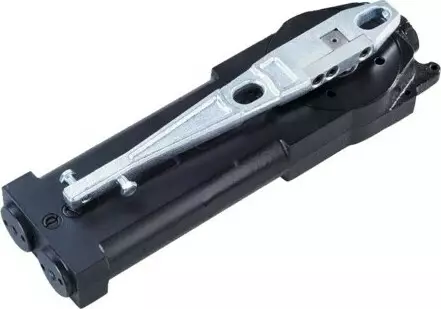

Lockwood 9800 Series Concealed Overhead Transom Door Closers provide a solution for applications where door control must be provided without disturbing the appearance of the door
Suitable for fire, metal, timber and glass doors
Max opening angle - 130°
Specification |
Size 2 |
Size 3 |
Size 4 |
Door Width |
850mm |
1050mm |
1220mm |
Door Weight |
115kg |
115kg |
115kg |
Minimum Door Thickness |
38mm |
38mm |
38mm |
Torque |
16Nm |
21Nm |
29Nm |
|
Function |
Specification:
Size:
$402.58 NZD
Approx $240.88 USD excl GST
9800 Transom Closer - 105? Hold Open - Size 3
