8800 Floor Spring - EN Size 2/3/4

Code: L8844H105

Brand: Lockwood

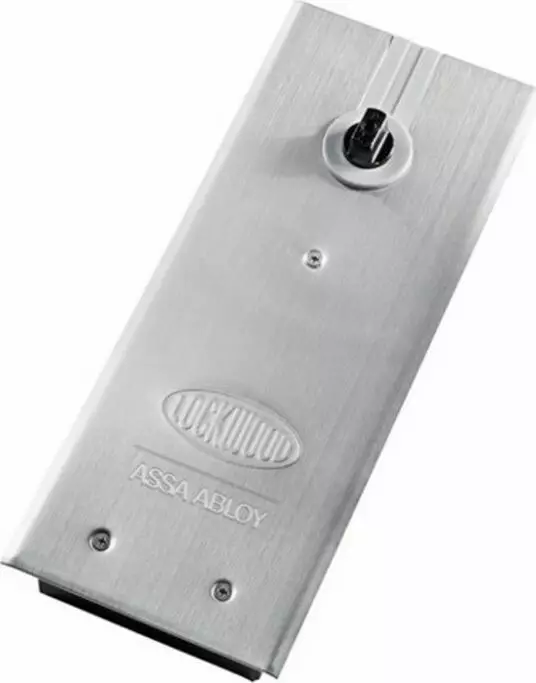

Lockwood Size EN-2/3/4 Floor Spring

The mounting kit provided will suit glass, timber and aluminium frame doors as standard
Two independent adjustment valves provide full hydraulic control

Specification	Size 2	Size 3	Size 4
Door Width	850mm	950mm	1100mm
Door Weight	120kg	120kg	120kg
Minimum Door Thickness	32mm	32mm	32mm
Torque	20Nm	27Nm	39Nm

Specification:

Size:

GST

Excl Incl

$591.75 NZD
Approx $367.74 USD excl GST

8800 Floor Spring - 105? HO - Size 4

kit

Lockwood - Floor Closers - Catalogue.pdf (2.0 MB)

0 ITEM

×

	Function
N	Non Hold Open
