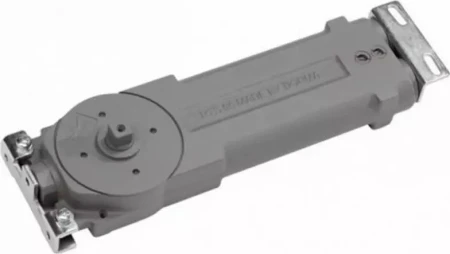

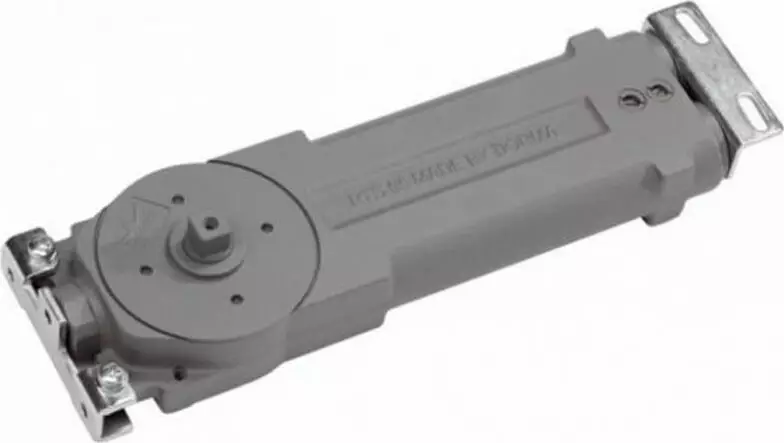

Suitable for both double and single action aluminium or metal framed doors
- Type - Transom concealed
- Max panel width - See table
- Application - For single and double action doors
- Backcheck - Yes progressive mechanical
- Backstop - Yes
- Hold open - Select from NHO / 90°HO / 105°HO
- Length - 323mm
- Width - 90mm
- Height - 38mm
Door width |
Internal doors |
External doors |
<950mm |
EN-3 |
EN-3 |
<1100mm |
EN-4 |
EN-4 |
<1250mm |
EN-5 |
- |
<1050mm |
- |
EN-5 |
Function:
Size:
$451.76 NZD
Approx $268.32 USD excl GST
RTS85 Closer Body EN-3 90? HO
