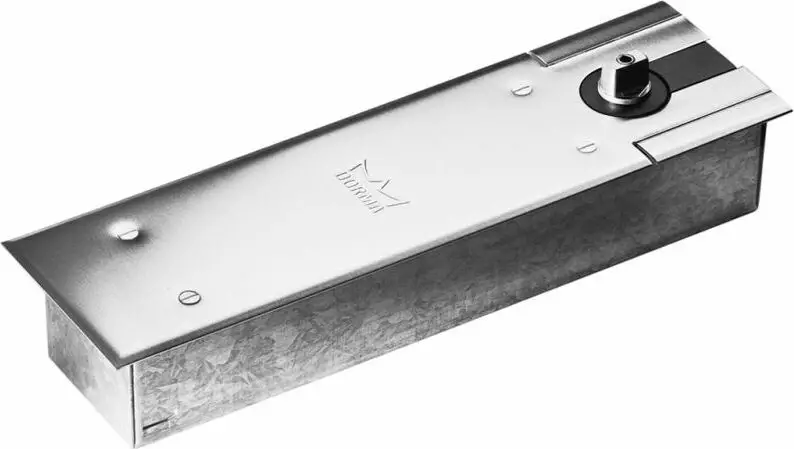

BTS80 Floor Spring CW Cement Case - Adj HO

Code: DM80110000

Supplied with a standard spindle & cement case

Cover plate is NOT included

  • Type - Floor spring
  • Handed - No
  • Max panel width - See table
  • Max panel weight - 300kg
  • Application - Aluminium, Timber or Glass doors
  • Backcheck - Yes
  • Delayed action - Yes (Selectable alternative to the HO feature)
  • Hold open - Yes (Adjustable)
  • Length - 341mm
  • Width - 78mm
  • Height - 60mm
Door width Closer force
<950mm EN-3
<1100mm EN-4
<1400mm EN-6
Size:
Excl Incl

$1,371.71 NZD
Approx $855.75 USD excl GST

BTS80 Floor Spring CW Cement Case EN-4 Adj HO
