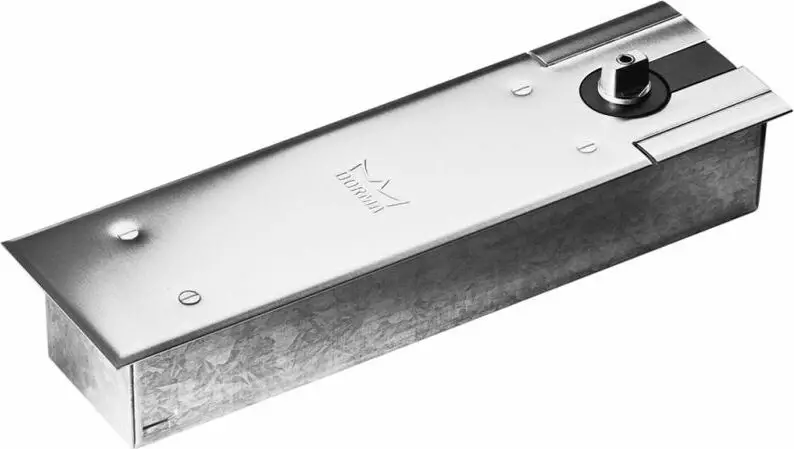

BTS80 Floor Spring CW Cement Case - Adj HO

Code: DM80120000

Brand: Dormakaba

Supplied with a standard spindle & cement case

Cover plate is NOT included

Type - Floor spring
Handed - No
Max panel width - See table
Max panel weight - 300kg
Application - Aluminium, Timber or Glass doors
Backcheck - Yes
Delayed action - Yes (Selectable alternative to the HO feature)
Hold open - Yes (Adjustable)
Length - 341mm
Width - 78mm
Height - 60mm

Door width	Closer force
<950mm	EN-3
<1100mm	EN-4
<1400mm	EN-6

Size:

GST

Excl Incl

$1,371.71 NZD
Approx $852.45 USD excl GST

BTS80 Floor Spring CW Cement Case EN-3 Adj HO

ea
